Jacuzzi

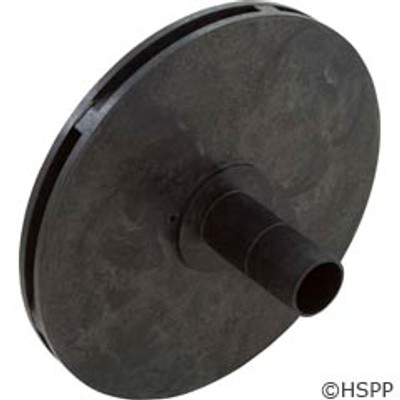

Impeller Jacuzzi Magnum 1.0OHP 1.5Thp 04+ 05-0382-03-R
_LG__50868.1469035143.jpg?c=2 "Impeller Jacuzzi Magnum 1.0OHP 1.5Thp 04+")
- SKU:
- 05-0382-03-R
- MPN:
- 05-0382-03-R
- Shipping:
- Calculated at Checkout
_LG__50868.1469035143.jpg?c=2?imbypass=on "Impeller Jacuzzi Magnum 1.0OHP 1.5Thp 04+")
_LG__46168.1469035143.jpg?c=2?imbypass=on "Impeller Jacuzzi Magnum 1.0OHP 1.5Thp 04+ at a different angle")
_LG__50868.1469035143.jpg?c=2 "Impeller Jacuzzi Magnum 1.0OHP 1.5Thp 04+")
_LG__46168.1469035143.jpg?c=2 "Impeller Jacuzzi Magnum 1.0OHP 1.5Thp 04+ at a different angle")
Description
Jacuzzi/Carvin Pump Impeller 05-0382-03-R is a closed face impeller made for the Magnum pool pump by Jacuzzi.
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4-11/16" |
| Vane Width ID | 3/16" |
| Eye Diameter OD | 2" |
| Eye Length | 9/16" |
| Impeller Width OD | 7/16" |
| Seal Seat Depth | 1/8" |
| Shaft Length | 1-9/16" |
| Shaft Diameter OD | 3/4" |
| Seal Seat Diameter OD | 1-3/8" |
| Manufacturer | Jacuzzi/Carvin |
| Pump Application | Magnum, Magnum Force, Magnum Force 3, Magnum Plus |
Closed face impeller made for the Magnum pool pump by Jacuzzi. Rated at 1.0hp, it is used in a Magnum pump body, and must be installed on a 1.0hp (or greater) C-face motor with a threaded shaft. Also fits Magnum Plus, Magnum Force and Magnum Force 3 pumps.
Shaft seal sold separately
