Spa Components
Heater Flothru Nuwave Repl 19" X 2" 230V 5.5 kW B24055C
- SKU:
- B24055C
- UPC:
- N
- MPN:
- B24055C
- Shipping:
- Calculated at Checkout
Description
Nu-Wave

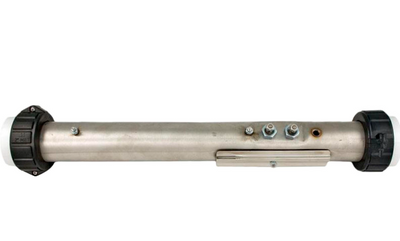

Stainless steel replacement heater assembly. 2" x 19" manifold includes 5.5kW/230v element and tailpiece assemblies. Pressure switch not included
Housing Configuration | Straight |
Heater Length | 19" |
Lead End Terminal Location | 4-5/8" |
Threaded Tap Orientation | 12 O`Clock |
Threaded Tap Location | 3-1/4"-From-Leading-End |
Kilowatts | 1.375kW, 5.5kW |
Voltage | 115v, 230v |
Sensor Stud Location | 5-1/2" |
Sensor Stud Orientation | 9 O`Clock |
Mounting Stud Type | Fixed |
Heater Size | 2" |
Heater Application | NuWave, West Coast |
NuWave 5.5kW spa heater for 2 inch plumbing is a 15 Inch, 230V heater model B24055C1 that replaces C2550-0313N.
Stainless steel heater 15" x 2" 5.5kW/230v replacement flow thru heater.
Pressure switch tap located at 0 degrees from the heater terminals (so on the same plane). The assembly has a sensor cover plate and comes with split nuts and gaskets.
Pressure switch not included - see 3029 if needed.
